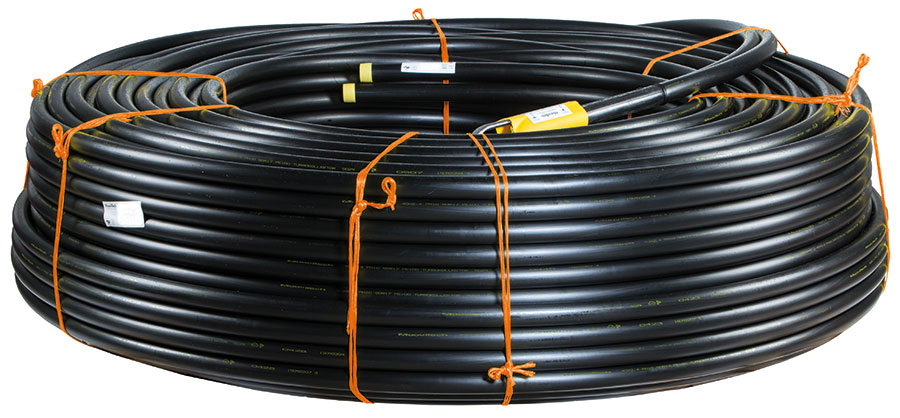

Standard collector
Traditional energy collector.
PRODUCT INFORMATION
Dimensions: 32mm, 40mm, 50mm
Lengths: 50-500m
Pressure classes: PN10 SDR17, PN12.5 SDR13.6 and PN16 SDR11
Material: PE100 och PE100RC
Supplied with factory-customised return weight. The return bend is well protected. Length is adapted for optimal transport and easy installation.
CERTIFICATE
P-mark of RISE with approval number SC1106-11.
The pipes are produced according to INSTA SBC 12201 EN 12201:2003, certificate 5029.
Dimensions: 32mm, 40mm, 50mm
Lengths: 50-500m
Pressure classes: PN10 SDR17, PN12.5 SDR13.6 and PN16 SDR11
Material: PE100 och PE100RC
Supplied with factory-customised return weight. The return bend is well protected. Length is adapted for optimal transport and easy installation.
CERTIFICATE
P-mark of RISE with approval number SC1106-11.
The pipes are produced according to INSTA SBC 12201 EN 12201:2003, certificate 5029.
